Description

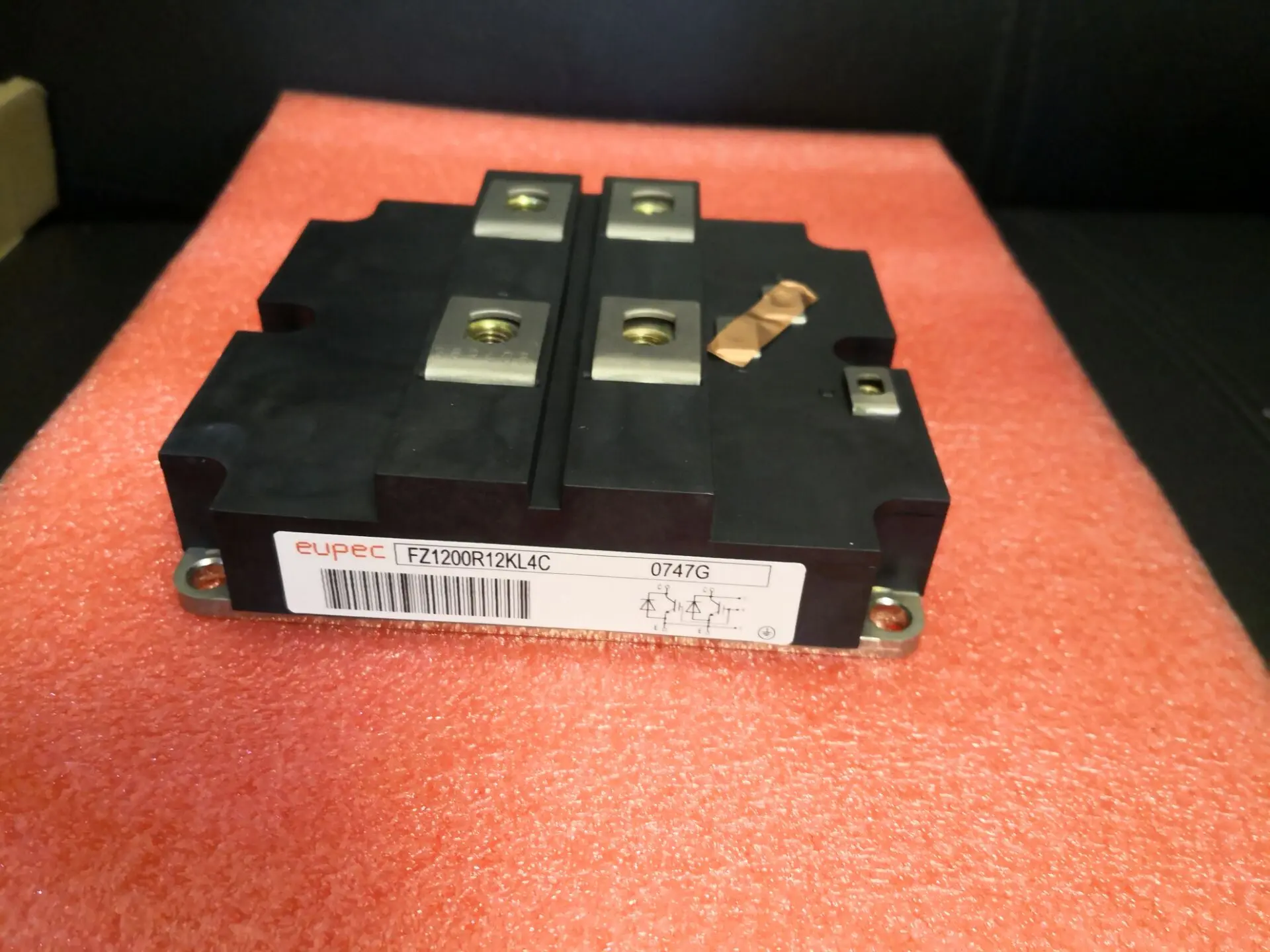

The FZ1200R12KL4C (Infineon, formerly Eupec) is a robust second-generation IGBT module, with a continuous current of 1,200 A and a blocking voltage of 1200 V. Thanks to its soft emitter-controlled diode (E-CCD) and low losses, this module offers excellent switching efficiency and heat dissipation, with power of up to 7.8 kW.
Key specifications:
- VCES voltage: 1200 V
- Continuous current IC: up to 1200 A (1900 A at 25 °C)
- Total power loss (TC 25 °C): 7.8 kW
- VCE(sat): ~2.1-2.9 V
- Topology: insulated module with 7 terminals
